Hydrothermal Fluid and Particle Sampler
![Hydrothermal Fluid and Particle Sampler Hydrothermal Fluid and Particle Sampler](https://www.pmel.noaa.gov/edd/sites/default/files/styles/medium/public/thumbnails/image/IMG_1468-2000.jpg?itok=izr3ZeDW)

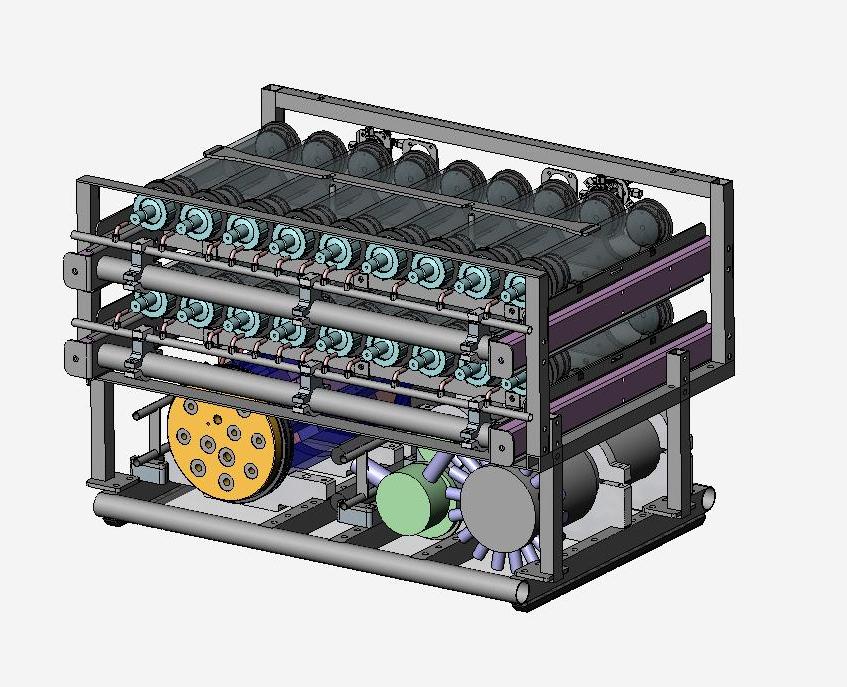

Hydrothermal Fluid and Particle Sampler (HFPS): HFPS collect fluids and particles while measuring temperature continuously, and pH and H2S when selected. Using a 25-port valve and two pumps built by McLane Research Laboratories, fluids are pumped through a titanium intake nozzle with a Pt resistance temperature sensor in-line in the nozzle, through a Teflon hose (Aeroquip 1/2-inch outer diameter, stainless-steel clad) and custom titanium and Teflon manifold with 24 ports. The sampler has a capacity of 18 water samples (700ml each) and 6 in-situ filters.
For more information: Vents Program
