North Pole Weather Data from 2006 Deployment

Weather data plot
Ice-temperature plot
Map of station drift

Weather plot: This plot presents incoming short-wave solar radiation measured by one of the radiometer buoys, along with air temperature, air pressure, and winds measured by the meteorological station. The weather station stopped transmitting on August 8, 2006.

The radiometer is currently frosted over (Dec. 1, 2006). The image below is the last available plot.

Weather plot of incoming short-wave solar radiation

Latest data (updated approximately weekly)

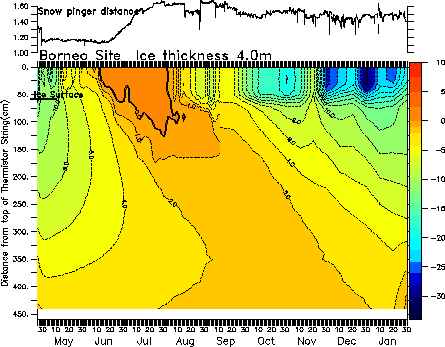

Ice-temperature plot: Plots of air, ice, and ocean temperature as measured by Mass Balance buoys developed by CRREL. The buoys at the Borneo site were funded through PMEL.

This year's mass-balance buoy was set out in ice 4m thick. For that reason, the bottom thermistors and the underwater pinger will be in ice, not water, until ice begins to melt.

Download preliminary data: 09115.cplot    09115.ping (click for header information)

The plot above the contour plot shows the distance to the snow from the snow pinger, originally 1.3 m above the snow. The decrease in distance on April 30 occurred during a windstorm, but is more abrupt than we would expect. It is possible that the post holding the pinger settled, but that is unlikely because the post was secured by a c-clamp and was well frozen in by that time.

CRREL plot of air, ice, and ocean temperature

Latest data (updated approximately weekly)

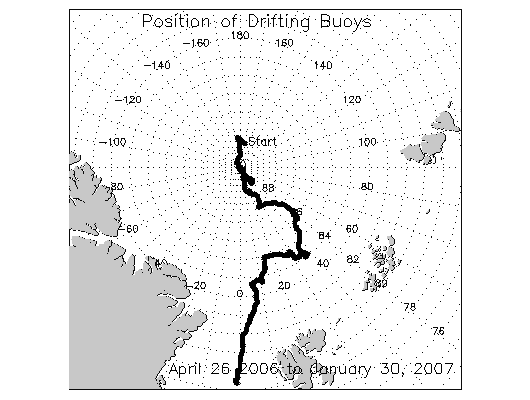

Map of station drift: Drift of the North Pole station since its deployment in April 2006. Station locations are obtained from the ARGOS system.

North Pole Station drift

Latest data (updated approximately weekly)

Click here to calculate sunrise/sunset times for any location on the earth.
