| Project: |
Ecosystem Trends |
|
| Location: | Bering Sea Site 2 | |
| Latitude: |
56° 52' N | |
| Longitude: |
164° 3' W | |
| seafloor | 72 meters | |
| currents |
70 cm/s |
|
| Deployment |
5 months | |
| |
| Instruments: | |
| Weatherpak |
1 |
CO2 buoy; ARGOS & GillSonic |
| RCM-9 (Seaguard) |
1 |
|
| Seacat |
3 | |
| Eco-Fluor. |
2 | |
| Microcat |
2 | |
| ISUS |
2 |
UAF |
| Temp Sensor (SBE-39) |
8 |
|
| Temp Sensor (MTR) |
5 |
|
| release |
1 | |

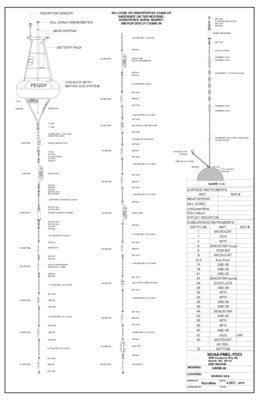

| Mooring: | |
| Instrument: | Depth | |
| Weatherpak (ARGOS, GillSonic) |
surface |
CO2 buoy, Mathis |
| Eppley |
surface |
|
| ISUS |
1m |
on bridle, UAF |
| MTR |
4m |
|
| Seacat (NP) |
6m |
|
| RCM-9C (Seaguard) |
8m |
|
| Microcat |
11.5m |
|
| EcoFluorometer |
12.5m |
|
| SBE-39 |
15m |
|
| SBE-39 |
18m |
|
| SBE-39 |
21m |
|
| Seacat (NP) |
24m |
|
| EcoFluorometer |
24m |
attach to Seacat |
| SBE-39 |
28m |
|
| MTR |
32m |
both MTR on same Cage |
| MTR |
32m |
|
| SBE-39 |
35m |
|
| SBE-39 |
39m |
|
| Seacat (NP) |
44m |
|
| SBE-39 |
50m |
|
| MTR |
55m |
both MTR on same Cage |
| MTR |
55m |
|
| SBE-39 |
60m |
|
| ISUS |
61m |
UAF, Cage |
| Microcat |
61m |
|
| release |
|
|
| seafloor | 72 m | |
| |
| Previous Deployments: |
13BSM-2A, April 2013 |
|
| |
| Mooring Design Change: |
|
| 1 |
Same 2013 design. Using CO2 buoy with GillSonic & Weatherpack |
|  |
