| Project: |
Ecosystem Trends |
|
| Location: | Bering Sea Site 2 | |
| Latitude: |
56° 52' N | |
| Longitude: |
164° 3' W | |
| seafloor | 72 meters | |
| currents |
70 cm/s |
|
| Deployment |
5 months | |
| | | |
| Instruments: | | |
| Weatherpak (ARGOS) |
1 | |
| RCM-9 |
1 |
|
| Seacat |
4 | |
| Eco-Fluor. |
2 | |
| Microcat |
3 | |
| ISUS |
2 |
UAF |
| SBE-39 |
10 |
|
| MTR |
1 |
|
| release |
1 | |

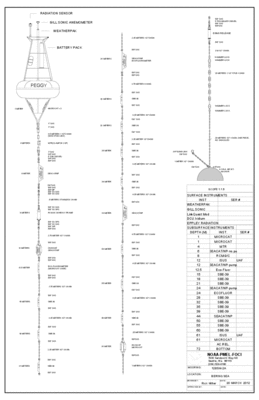

| Mooring: | | |
| Instrument: | Depth | |
| Weatherpak (ARGOS) |
surface | |
| Eppley |
surface |
|
| Microcat |
1m |
on bridle |
| Microcat |
1m |
on bridle |
| MTR |
4m |
|
| Seacat (NP) |
6m |
|
| RCM-9C |
8m |
|
| ISUS |
12m |
UAF, Cage |
| Seacat (NP) |
12m |
on ISUS Cage |
| EcoFluorometer |
12.5m |
|
| SBE-39 |
15m |
|
| SBE-39 |
18m |
|
| SBE-39 |
21m |
|
| Seacat (NP) |
24m |
|
| EcoFluorometer |
24m |
attach to Seacat |
| SBE-39 |
28m |
|
| SBE-39 |
32m |
|
| SBE-39 |
35m |
|
| SBE-39 |
39m |
|
| Seacat (NP) |
44m |
|
| SBE-39 |
50m |
|
| SBE-39 |
55m |
|
| SBE-39 |
60m |
|
| ISUS |
61m |
UAF, Cage |
| Microcat |
61m |
on ISUS Cage |
| release |
|
|
| seafloor | 72 m | |
| | | |
| Previous Deployments: |
11BSM-2A, April 2011 |
|
| | | |
| Mooring Design Change: |
|
|
| 1 |
removed PCO2, added 2 microcats on bridle at 1m |
|
| 2 |
MTR replaced by SBE-39 at 18m, 32m and 55m |
|
| 3 |
Add EcoFluorometer at 24m |
|
| 4 |
remove Microcat, replace with Seacat/NP at 44m |
|
| 5 |
remove Seacat, replace with Microcat at 61m |
|
|  |
original
 |
