| Project: | Ecosystem Trends | |
| Location: | Bering Sea Site 5 | |
| Latitude: | 59° 54.6' N | |
| Longitude: | 171° 42' W | |
| seafloor |
70 meters | |
| currents | 70 cm/s | |
| Deployment |
5 months |
|
| | | |
| Instruments: | | |
| Seacats |
1 | |
| EcoFluor. |
1 |
|
| Microcats |
2 |
|
| SBE-39 |
11 |
|
| RCM-9 |
1 | |
| Temp Sensors (MTR) |
2 |
|
| release | 1 | |

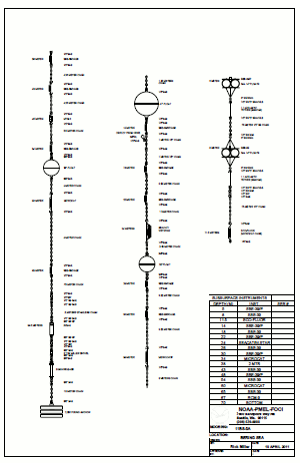

| Mooring: | | |
| Instrument: | Depth | |
| Temp Sensor (SBE-39/P) |
5m |
Tri-V float |
| Temp Sensor (SBE-39) |
8m |
Tri-V float |
| EcoFluor. |
11.5m |
|
| NO Instrument |
12m |
|
| Temp Sensor (SBE-39/P) |
14m |
|
| Temp Sensor (SBE-39) |
18m |
|
| Temp Sensor (SBE-39/P) |
22m |
|
| SeaCat/WETStar |
24m |
|
| Temp Sensor (SBE-39) |
26m |
|
| Temp Sensor (SBE-39) |
30m |
|
| Microcat/P |
34m |
|
| Temp Sensor (2 MTR) |
38m |
2 instr |
| Temp Sensor (SBE-39) |
43m |
|
| Temp Sensor (SBE-39/P) |
48m |
|
| Temp Sensor (SBE-39) |
54m |
|
| Microcat |
60m |
|
| Temp Sensor (SBE-39) |
65m |
|
| RCM-9 |
67m |
|
| release | | |
| seafloor | 70 m | |
| | | |
| Previous Deployments: |
This mooring originally scheduled to be deployed as 10BS-4A | |
| | | |
| Mooring Design Change: | | |
| 1 |
Remove nitrate meter/Seacat at 12m | |
| 2 |
At 24m - replaced EcoFluor with Seacat/WETStar |
|
| 3 |
ISUS removed from mooring at 59m |
|
|  |
original
 |
