Real-Time Biological Data From Biophysical Oceanographic Moorings:
Zooplankton Abundance

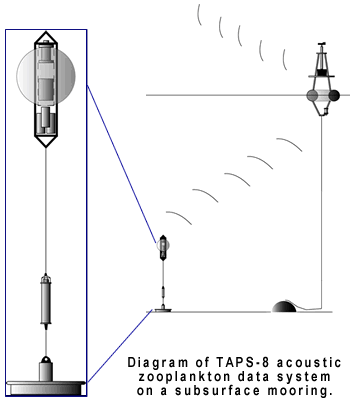

The EcoFOCI team has developed and will deploy a mooring system for acoustic zooplankton monitoring using the TAPS-8 (Tracor Acoustic Profiling System, 8-frequency). The system will incorporate real-time data transmission and reporting capabilities via satellite and iridium satellite modem. This system will send daily data from the southeastern Bering Sea shelf to our laboratory.

The testing performed at PMEL in September 2005 was designed and setup to involve the TAPS-8 in a closed real time system. This was completed by deploying the TAPS on a subsurface mooring, and transmission of TAPS data via acoustic modem on the sub-surface buoy to a surface-mounted modem. The recovered data was then transmitted through Iridium satellites to the PMEL Laboratory.

The mooring and real-time data relay system will be deployed as a Bering Sea sub-surface mooring in Spring 2006.

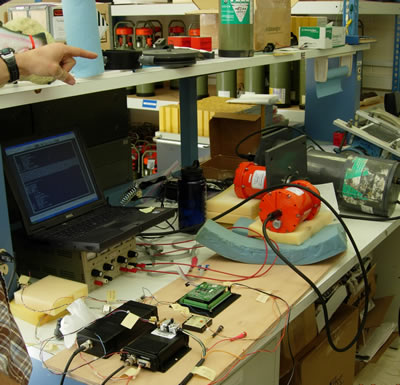

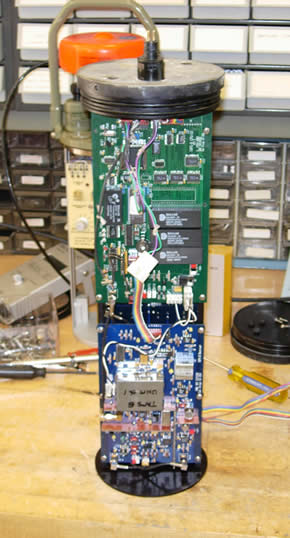

The TAPS-8 instrument	Closed-loop bench test of complete system.

Satellite test ouput, Hex, 28-Sep-2005 14:38 PST @@@«ã ### AAAA091C0E1D091C0E1E53EA000200000404040404 0404040013BD5700000007415DF59B001326120000 00063C4904160013C42D0000000701629BC5001367 0F0000000694097C7B00144222000000072FB6168A 0013B3E800000007037A64780013D581000000072E 24E0150013E54E00000007413DFB26042E0031225B 00000057BC9ABD1B03B7001E6C7A0000000A02E215 9A03D1002051690000000B973B6EE503C4001F95E7 0000000B38C047FF03C8001FC0C00000000B2B6C6F 2803DB0020B9C70000000B5C4FB3A303BD001EE9BD 0000000AA09337B90492004434E2000000E8984920 5203B5001E72100000000A068E41FC03DB00209874 0000000B295A4B9803B5001ED4D80000000AD83471 3403BC001F3CA10000000AF0CB367503DC0020F9A0 0000000BA2FD898803B5001EA8600000000AA2C3FD DC04A300492EA50000013E09DBF8E103CD001FF819 0000000AFED5905503B6001E87650000000A452913 7903BF001ED9430000000A3C684E0B03E7002166B1 0000000BC2C6A20503C7001F9CA00000000B170817 F003B5001EECCE0000000AF2CDA4EE048000417B72 000000F134351BE203DE0020FCDE0000000BADEB1B 4E03B9001EB8970000000A68F7799F03BD001F1DF2 0000000AB31E0F9E03DF002112090000000B80D0D5 D903C6001F46EE0000000AA006476E03C6001FB186 0000000B2C07585A$$$204FB5$  Satellite test ouput, Hex, 28-Sep-2005 14:44 PST @@@4 $$AAA09 ###AAAA091C0E25091C0E2653EA0002000004040404040404040 013DAB30000000707BC23A70013F406000000071A3F1F3A00 13B4E500000006ABBE498D00143C610000000730896B55001 43DAE0000000726E1955200141C1D0000000746D0CE450013 FFAB00000006FDC904770013636200000006B0B22EC204850 03F4E7D000000AEE3C7697103DA0020D94B0000000BA6E96D B703CA001FD7D60000000B013B0E0603D3002032100000000 AF44C375803F20021F6D30000000BFC16401B03E40021ABB4 0000000C8E1C24C403C4001FD90C0000000BAC5A26D8046A0 03A60BE0000008B4CB50EF603C6001F0FD400000009F6F0CB B803D6002019080000000AD85F30E003DA0020EFC70000000 C0ABC0BF303D70020DBF20000000C42E5E6FA03CE0020218D 0000000B5DCAF2C903CE001FC9120000000AD47CFECA047C0 03A4484000000799642068003CC001F88EE0000000AA6AD13 2E03CB001FBA7C0000000B295F1C1C03CE002059440000000 BD967A55C03CE002036FD0000000BA5C5163103C4001F9426 0000000B08A88DF603BB001EEA820000000A67D01BFA04860 04267F8000000CA998AE5F403B9001F0D5E0000000AD521C0 B603BF001F643C0000000AE932CA3803BA001EB57E0000000 A1972A53E03DA0020EF7F0000000BB991C64B03ED002221AE 0000000C9D5DCEA603CF0020043C0000000B3D17A1EC$
